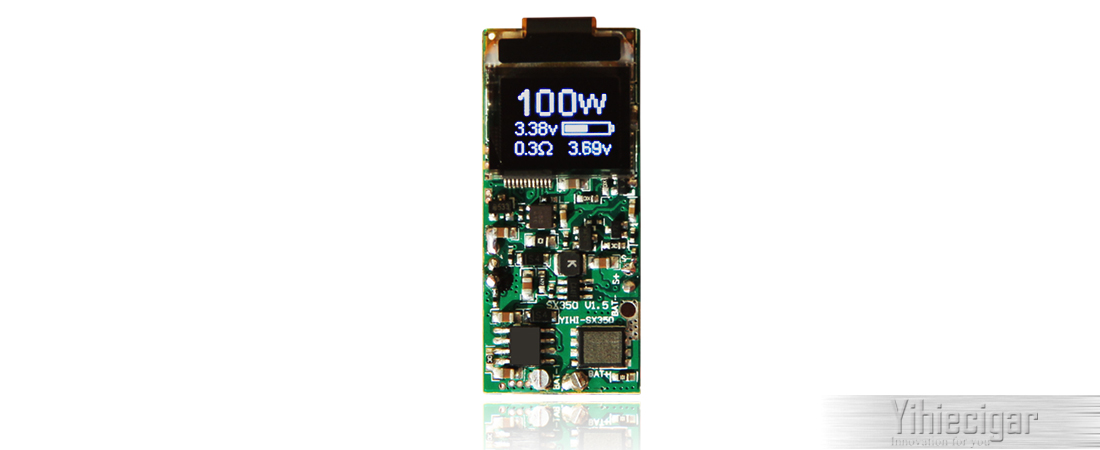

YiHi SX350 100w

* The 2nd generation vapor intelligent chip

* Upgradable chip

* VW: 10W-100W

* VV: 1.0V-9.5V

* Buck-Boost&Boost

* OLED 0.66" Screen

  • Overview
  • Specification
  • Wire diagram
  • F&Q
Overview

SX350 100w 1100x450.jpg


Features
* The 2nd generation vapor intelligent chip
* Upgradable chip
* VW: 10W-100W
* VV: 1.0V-9.5V
* Buck-Boost&Boost
* OLED 0.66" Screen
Warning:If you're not skilled, experienced, and comfortable with Electronics,
Soldering, and Safety you should not be purchasing this chip!  It is intended
for experienced individuals.

No.

Specs

Minimum

Typical

Max



1

Output Power (2 Batteries)

10 Watts

50 Watts

100 Watts New



2

Output Voltage

DC-DC Buck-boost& Boost together

1.0 Volts

5.0 Vots

9.5 Volts



3

Output Current

1.25A

12.0A

40A New



4

Atomizer Resistance

0.15 Ohms New

0.5 Ohms

3.0 Ohms



5

Input Voltage

(2* 18650 & 7.4V Li-ion )

6.2 Volts

7.4 Volts

8.5 Volts



6

Input Current

1.5 A

10.0 A

40A New



7

Screen On Current


150 mA




8

Quiescent Current


1 mA




9

Power Down Current


300 uA




10

Efficiency


95%




11

Screen size


0.66" OLED




12

Fire Method

One Fire Button

13

Adjust Power Method

Both Gravity Sensor (Tilt) and Up&Down Button Available

14

USB Charging for Battery

NO





15

App controlled Bluetooth

NO





16

Software Upgrate/GUI operate

YES  (YiHiEcigar SXi Software )

17

Charging for Mobile Phone

N/A





18

Customize Logo

YES





19

Protection:

1. Reverse Polarity Protection (required to solder an extra negative wire to the pinout labeled Bat - .  Which is just above the Red positive wire on the right side of the board

2. Output Short Protection

3. Low Resistance Protection

4. Battery low voltage Protection

5. Temperature Overheat Protection
